RAE Systems Ammonia Colorimetric Gas Detection Tube, 1 - 30 ppmv (10 Tubes / Box) - 10-100-05


Item #
10-100-05
Price
$39.00
Quantity
Send Page to Friend

10-100-05 Ammonia Colorimetric Gas Detection Tube, 1 - 30 ppmv (10 Tubes / Box) by RAE Systems

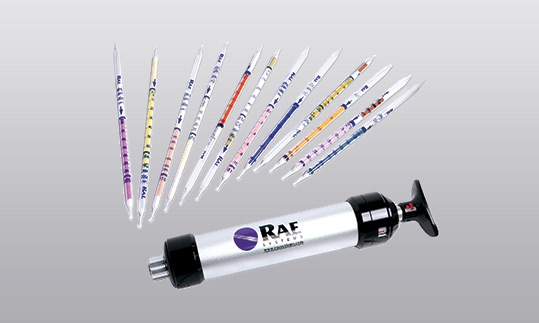

RAE Systems colorimetric gas detection tubes enable quick, on-the-spot measurement of a wide range of toxic and combustible gases and vapors. RAE Systems tubes are easy to read, and provide a sharp, clear color change directly corresponding to the concentration of gas present. RAE Systems tubes are compatible with the RAE Systems piston hand pump, a reliable way to draw samples of an exact volume required for the most accurate measurements.

Key Features

  • Wide assortment of tubes available to detect over 300 gases and vapors
  • Easyto use, even in multiple layers of gloves
  • Easy-to-read with sharp,clearcolorchange
  • No calibration or other maintenance required

Applications

  • Oil and gas
  • Chemicals and petrochemicals
  • Agriculture and pestcontro
  • Food and beverage production
  • Environmental protection
  • Fire service
  • HazMat response
  • Nationalsecurity



Type
Part Number
Standard Range
Extended Range
Acetone
10-111-40
0.1 to 2%
0.05 to 4%
Amines
10-132-10
0.5 to 10 ppmv
0.25 to 20 ppmv
Ammonia
10-100-05
1 to 30 ppmv
0.5 to 60 ppmv
10-100-10
5 to 100 ppmv
2.5 to 200 ppmv
10-100-12
10 to 260 ppmv
5 to 520 ppmv
10-100-15
25 to 500 ppmv
12 to 1000 ppmv
10-100-40
1 to 15%
0.5 to 30%
Benzene
10-101-01*
0.5 to 10 ppmv selective
0.25 to 30 ppmv
10-101-10*
5 to 40 ppmv selective
25 to 200 ppmv
10-101-20
5 to 100 ppmv
2.5 to 200 ppmv
Butadiene
10-135-04
0.5 to 5 ppmv
0.25 to 10 ppmv
n-Butane
10-137-30
25 to 1400 ppmv
12.5 to 2800 ppmv
Carbon Dioxide
10-104-30
300 to 5000 ppmv
150 to 10,000 ppmv
10-104-40
0.05 to 1%
0.025 to 2%
10-104-45
0.25 to 3%
0.125 to 6%
10-104-50
1 to 20%
0.5 to 10%
10-104-60
5 to 40%
1.25 to 20%
Carbon Monoxide
10-102-18
5 to 100 ppmv selective
2.5 to 300 ppmv
10-102-20
5 to 100 ppmv
2.5 to 200 ppmv
10-102-30
20 to 500 ppmv
10 to 1000 ppmv
10-102-45
0.2 to 4%
0.4 to 8%
Chlorine
10-106-10
0.5 to 8 ppmv
0.25 to 16 ppmv
10-106-20
5 to 100 ppmv
2.5 to 200 ppmv
Chlorine Dioxide
10-130-10
0.25 to 15 ppmv
0.05 to 30 ppmv
Diesel & Jet Fuel
10-143-10
0.5 to 25 ppmv
N/A
Ethanol
10-141-30
100 to 2000 ppmv
50 to 2000 ppmv
Formaldehyde
10-121-05
0.1 to 5 ppmv
0.1 to 40 ppmv
Gasoline
10-138-30
30 to 1000 ppmv
15 to 2000 ppmv
Hydrocarbons
10-110-30
50 to 1000 ppmv
25 to 2000 ppmv
Hydrogen Chloride
10-108-09
1 to 20 ppmv
0.5 to 40 ppmv
10-108-10*
1 to 20 ppmv w/ desiccant
0.5 to 40 ppmv
10-108-22
20 to 500 ppmv
10 to 1000 ppmv
Hydrogen Cyanide
10-126-10
2.5 to 60 ppmv
1.25 to 120 ppmv
Hydrogen Fluoride
10-105-10
0.5 to 20 ppmv
0.25 to 40 ppmv
Hydrogen Sulfide
10-103-04
0.2 to 3 ppmv
0.1 to 6 ppmv
10-103-05*
0.2 to 3 ppmv w/ desiccant
0.1 to 6 ppmv
10-103-06
1 to 7 ppmv
0.25 to 7 ppmv
10-103-10
2.5 to 60 ppmv
1.25 to 120 ppmv
10-103-12
10 to 120ppmv
5 to 240ppmv
10-103-15
10 to 120 ppmv
5 to 240 ppmv
10-103-18
25 to 250 ppmv
12.5 to 500 ppmv
10-103-20
50 to 800 ppmv
25 to 1600 ppmv
10-103-30
100 to 2000 ppmv
50 to 4000 ppmv
10-103-40
0.1 to 2%
0.05 to 4%
10-103-50
2 to 40%
0.5 to 20%
MEK
10-113-20
0.02 to 0.6 %
0.01 to 1.8 %
Mercaptans
10-129-20
5 to 120 ppmv
2.5 to 240 ppmv
Methyl Bromide
10-131-10
1 to 18 ppmv
0.5 to 36 ppmv
10-131-30
20 to 300 ppmv
40 to 600 ppmv
Nitric Acid
10-146-20
1 to 20 ppm
0.5 to 40 ppm
Nitrogen Dioxide
10-117-10
0.5 to 30 ppmv
N/A
Nitrogen Oxides
10-109-20*
1 to 50 ppmv
0.5 to 100 ppmv
Ozone
10-133-03
0.05 to 0.6 ppmv
0.15 to 1.8 ppmv
Phenol
10-139-05
1 to 25 ppmv
0.5 to 180 ppmv
Phosphine
10-116-10
5 to 50 ppmv
2.5 to 100 ppmv
10-116-20
25 to 500 ppmv
12.5 to 1000 ppmv
10-116-25
50 to 1000 ppmv
25 to 2000 ppmv
Sulfur Dioxide
10-107-15
2 to 30 ppmv
1 to 60 ppmv
10-107-20
5 to 100 ppmv
2.5 to 200 ppmv
10-107-25
100 to 1800 ppmv
50 to 3600 ppmv
10-107-30
200 to 4000 ppmv
50 to 4000 ppmv
10-107-40
0.2 to 5 %
0.1 to 10 %
Toluene
10-114-20
10 to 300 ppmv
5 to 600 ppmv
Trichloroethylene
10-119-20*
5 to 100 ppmv
2.5 to 230 ppmv
Vinyl Chloride
10-128-10*
1 to 20 ppmv
0.5 to 40 ppmv
Water Vapor
10-120-10
2 to 10 lbs/MMCF
(0.03 to 0.16 mg/L)
1 to 20 lbs/MMCF
10-120-20
6 to 40 lbs/MMCF
(0.1 to 0.64 mg/L)
3 to 80 lbs/MMCF
10-120-30
0.05 to 1 mg/L
0.025 to 2 mg/L
10-120-40
1 to 18 mg/L
0.5 to 32 mg/L
Xylene
10-112-20
10 to 200 ppmv
5 to 400 ppmv
* Box contains 5 colorimetric tubes and 5 pre-tubes, for a total of 5 measurements. Other boxes contain 10 colorimetric tubes.
