RAE Systems MiniRAE Lite Portable Handheld VOC Monitor - 10.6 eV Lamp, Li-Ion / Universal Charger, Calibration Kit - 059-A110-000

RAE Systems MiniRAE Lite Portable Handheld VOC Monitor - 10.6 eV Lamp, Li-Ion / Universal Charger, Calibration Kit - 059-A110-000

$3,769.00

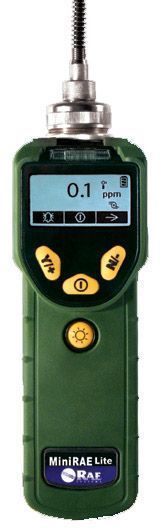

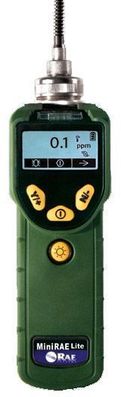

059-A110-000 MiniRAE Lite Portable Handheld VOC Monitor - 10.6 eV Lamp, Li-Ion / Universal Charger, Calibration Kit by RAE Systems

The MiniRAE Lite is the most reliable handheld volatile organic compound (VOC) monitor on the market. Its photoionization detector's (PID) range of 0 to 5,000 ppm makes it an ideal instrument for applications ranging from environmental to construction.

Monitor only includes

  • MiniRAE Lite Monitor, Model PGM-7300
  • RAE Systems 10.6 eV UV lamp
  • Flex-I-Probe
  • External filter
  • Green rubber boot
  • Alkaline battery adapter
  • Lamp cleaning kit
  • Tool kit
  • Lithium-ion (Li-ion) battery, if specified with universal AC/DC charger and international plug kit
  • Travel charger, if specified
  • Universal wall adapter, if specified
  • Operation & Maintenance manual
  • Soft leather carrying case

Monitor with accessories kit adds

  • Hard transport case with pre-cut foam padding
  • 5 Porous metal filters and O-rings
  • Organic vapor zeroing kit
  • Gas outlet port adapter and tubing

Optional calibration kit adds

  • 100 ppm isobutylene calibration gas, 34L
  • Calibration regulator and flow controller

Key Features

  • Proven PID technology-The patented sensor provides the following unique features: 3-second response time, Range up to 5,000 ppm, Humidity compensation
  • Designed for service-Easy access to lamp and sensor in seconds without tools
  • Big graphic display for easy overview of concentration
  • Field-interchangeable battery pack, replaceable in seconds without tools
  • Integrated flashlight for better visibility in low light
  • Multi-language support with 12 languages encoded
  • Rugged housing withstands use in harsh environments: IP-65 design and Strong, protective removable rubber boot

Additional Advantages

  • Duty-cycling™ lamp and sensor auto-cleaning technology
  • Tough, flexible inlet Flexi-Probe™
  • Large keys are operable with 3 layers of gloves
  • Strong, built-in sample pump draws up to 100' (30m) horizontally or vertically
  • Loud, 95 dB audible alarm
  • Bright red flashing visible alarm
  • Interchangeable drop-in Lithium-ion and alkaline battery packs
  • 3-year 10.6 eV lamp warranty



Instrument Specifications
Size 10" L x 3.0" W x 2.5" H (25.5 x 7.6 x 6.4 cm)
Weight 26 oz (738 g)
Sensors Photoionization sensor with standard 10.6eV lamp
Battery - Alkaline battery adapter
- External field-replaceable lithium-ion battery pack, if specified
Operating Hours 12 hours of operation on alkaline battery adapter (12 hours with lithium-ion battery pack)
Display Graphic 4 lines, 28 x 43 mm, with LED back light
Keypad 1 operation and 2 programming keys, 1 flashlight on/off
Direct Readout Instantaneous reading of:
- VOCs as ppm by volume
- High and low values
- Date and time
Alarms 95 dB buzzer (at 30 cm) and flashing red LED to indicate exceeded preset limits
- High: 3 beeps and flashes per second
- Low: 2 beeps and flashes per second
- Alarm latching with manual override or automatic reset
- Additional diagnostic alarm and display message for low battery and pump stall
EMI/RFI - Highly resistant to EMI/RFI.
- Compliant with EMC directive 89/336/EEC
IP Rating IP-65
Calibration Two-point calibration for zero and span
Sampling Pump - Internal, integrated flow rate at 400 cc/min
- Sample from 100' (30m) horizontally and vertically
Low Flow Alarm Auto shut-off pump at low-flow condition
Hazard Area Approval None
Operating Temperature -4° to 113° F (-20° to 50° C)
Humidity 0 to 95% relative humidity (non-condensing)
Attachments Durable green rubber boot
Warranty 3 years for 10.6 eV lamp, 1 year for pump, battery and instrument


Sensor Specifications
Gas Monitor Range (ppm) Resolution (ppm) Response Time (T90)
VOCs 0 to 999.9 0.1 < 3 sec
VOCs 1000 to 5,000 1 < 3 sec
